EDGEfast Hidden Deck Fastener System: Place It Once. Shoot It Twice.
Stop making your crew crawl across the deck driving face screws one at a time. The EDGEfast hidden deck fastener system gives professional deck builders a faster, cleaner way to secure two adjacent deck-board edges from a single tool position over the joist.
Place the pneumatic EDGEfast tool over the joint, drive one fastener into each opposing board edge and keep moving. The angled fasteners remain hidden below the finished surface, while the interchangeable gap plates help installers maintain the spacing specified for the project.
Watch the EDGEfast System in Action
A professional installer positions the pneumatic EDGEfast tool over the joist between two square-edge deck boards and drives one angled hidden fastener into each opposing board edge. Two board edges are secured from a single placement, keeping the finished deck surface free of exposed screw heads.
Demonstration video — contractor using the EDGEfast pneumatic decking system.
Built for Contractors Who Need More Production From Every Crew
- One tool placement drives fasteners into two adjacent board edges
- Pneumatic operation eliminates individually loading and driving loose deck screws
- Hidden angled fastening leaves no exposed fastener heads across the deck surface
- Included gap plates provide 0-inch, 1/8-inch, 3/16-inch and 1/4-inch spacing options
- Tool magazine holds four collated strips of 25 fasteners each
- Collated fasteners support quick loading and efficient installation
- Available with 304 stainless steel or economical EDGEcoat steel fasteners
- EDGEcoat fasteners are approved for ACQ pressure-treated lumber
- Designed for approved PVC and many square-edge wood decking applications
- Professional system built for production-minded contractor crews
Need help matching EDGEfast to your decking? Call Fastener Express at (952) 469-2943.
EDGEfast Tools & Fasteners
Live catalog pricing and stock status. Order online or call (952) 469-2943 for fastener selection help and contractor volume pricing.
Your Labor Margin Is Too Valuable for Slow Deck Fastening
Face-fastening a deck can turn skilled installers into screw-driving machines. Pick up a screw. Position it. Drive it. Correct the depth. Move to the next joist. Repeat the process across every board and every course.
Traditional hidden clip systems clean up the surface, but many still require installers to handle loose clips and screws at every connection. That can mean more time kneeling, more individual parts and more repetitive work between boards.
EDGEfast attacks that bottleneck directly. Its pneumatic installation method is built around a simple production idea: position the tool once and fasten both adjoining board edges. The operator places the EDGEfast tool over the joist and between the boards, then drives one angled fastener in each direction. Two board edges are secured from one placement before the crew advances to the next joist.
That matters on one deck. Across an entire building season, it can matter even more. Reducing repetitive fastening steps can help a contractor protect labor hours, maintain installation momentum and move crews toward the next billable project.
Do not judge a professional decking system by tool price alone. Judge it by what repeated fastening costs your business every week.
Why Professional Deck Builders Choose EDGEfast
One Placement. Two Hidden Fasteners.
EDGEfast sits over the joint where two square-edge deck boards meet above a joist. From that single position, the pneumatic tool drives a fastener into each opposing board edge. The manufacturer describes the process simply: place it once and shoot it twice. Instead of repositioning a drill for separate face screws or manually handling a clip-and-screw assembly, the installer can make two hidden connections and continue down the joist line.
No Rows of Screws Across the Finished Surface
The EDGEfast system drives fasteners at an angle through the board edges and into the joist. Because the fastener heads are not driven through the walking surface, the completed deck avoids the grid of exposed screws associated with face fastening. That cleaner appearance allows the color, grain and profile of the decking to remain the focus, and gives contractors a more polished finished project to photograph, market and show future clients.
Adjustable Deck-Board Spacing
Board spacing is not one-size-fits-all. EDGEfast includes interchangeable gap spacer plates for 0-inch, 1/8-inch, 3/16-inch and 1/4-inch gaps. The plates install on the tool and help the crew maintain the selected spacing as installation progresses. Always follow the decking manufacturer's current spacing requirements. Material, moisture content, temperature and product instructions can affect the required installation gap.
High-Capacity Collated Fastener Loading
The EDGEfast tool holds four strips of 25 collated fasteners, providing a total loaded capacity of 100 fasteners. Collation keeps the fasteners organized, speeds reloading and eliminates the need to handle each fastener individually.
A Positive Board-to-Joist Connection
EDGEfast fasteners use an angled drive and a double-point design to create a positive connection between the deck board and joist. The fastener's stepped cross section is engineered for strength while helping reduce the risk of splitting the joist during installation. Proper performance still depends on using an approved deck board, the correct fastener, suitable framing and the manufacturer's required installation procedure.
Two Fastener Materials for Different Job Requirements
Contractors can choose between 304 stainless steel EDGEfast fasteners and the more economical EDGEcoat steel fasteners approved for ACQ-treated lumber. That allows the installer to match the fastener material to the deck environment, lumber treatment, project specification and budget.
EDGEfast vs. Face Screws vs. Traditional Hidden Deck Clips
The right system depends on the board and project specification. For qualified square-edge applications, EDGEfast is designed to deliver the visual advantage of hidden fastening without the loose hardware and repetitive screw-driving process common to many alternatives.
| Feature | EDGEfast system | Face screws | Traditional hidden clips |
|---|---|---|---|
| Finished deck surface | No exposed fastener heads | Visible screws or plugs | Hidden fasteners |
| Installation method | Pneumatic, angled edge fastening | Individual screws driven through board face | Clips and screws installed between boards |
| Connections per tool position | Two opposing board edges | One screw at a time | Typically one clip assembly at a time |
| Fastener handling | Collated strips | Loose or collated screws, depending on system | Individual clips and screws |
| Board spacing | Interchangeable 0, 1/8, 3/16 and 1/4-inch gap plates | Measured or spacer-assisted | Usually determined by clip geometry |
| Primary board profile | Approved square-edge decking | Square-edge decking | Usually grooved decking |
| Best fit | Production-minded professional crews installing approved wood or PVC square-edge decking | Repairs, small jobs and conventional installs | Projects specified for grooved boards and clips |
What Comes With the EDGEfast Decking Tool?
The current EDGEfast hidden deck fastening tool listing includes the pneumatic tool and interchangeable gap spacer plates for 0-inch, 1/8-inch, 3/16-inch and 1/4-inch spacing. The EDGEfast magazine holds four collated strips containing 25 fasteners each.
- 1 EDGEfast pneumatic decking tool
- Interchangeable 0-inch gap spacer plate
- Interchangeable 1/8-inch gap spacer plate
- Interchangeable 3/16-inch gap spacer plate
- Interchangeable 1/4-inch gap spacer plate
EDGEfast fasteners are purchased according to the material and project requirements; confirm the current package contents and selected fastener before ordering.
EDGEfast EF2.25 Fasteners
Choose the fastener material that matches the deck environment, lumber treatment, project specification and budget.

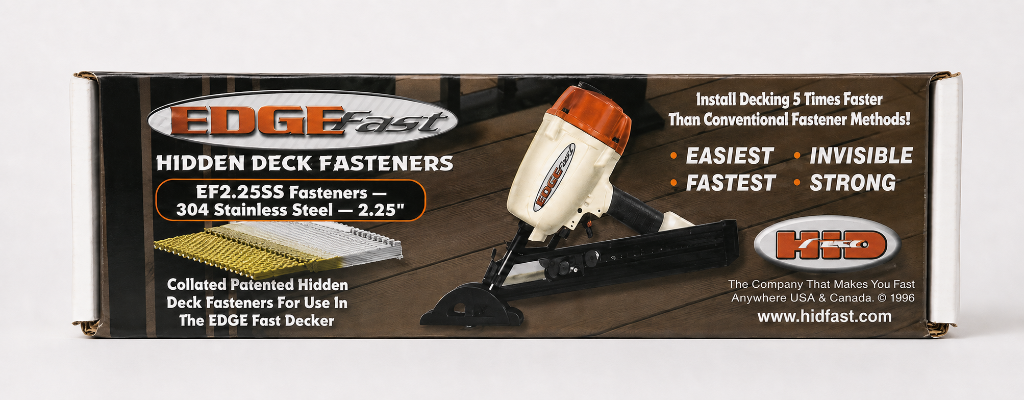

EDGEfast EF2.25SS
304 Stainless Steel · 2-1/4 in · 350 ct
EF2.25SS fasteners are 2-1/4-inch stainless steel fasteners manufactured for the EDGEfast pneumatic decking tool. The current package contains 350 fasteners. Choose stainless steel where the project specification or exposure conditions call for enhanced corrosion resistance.

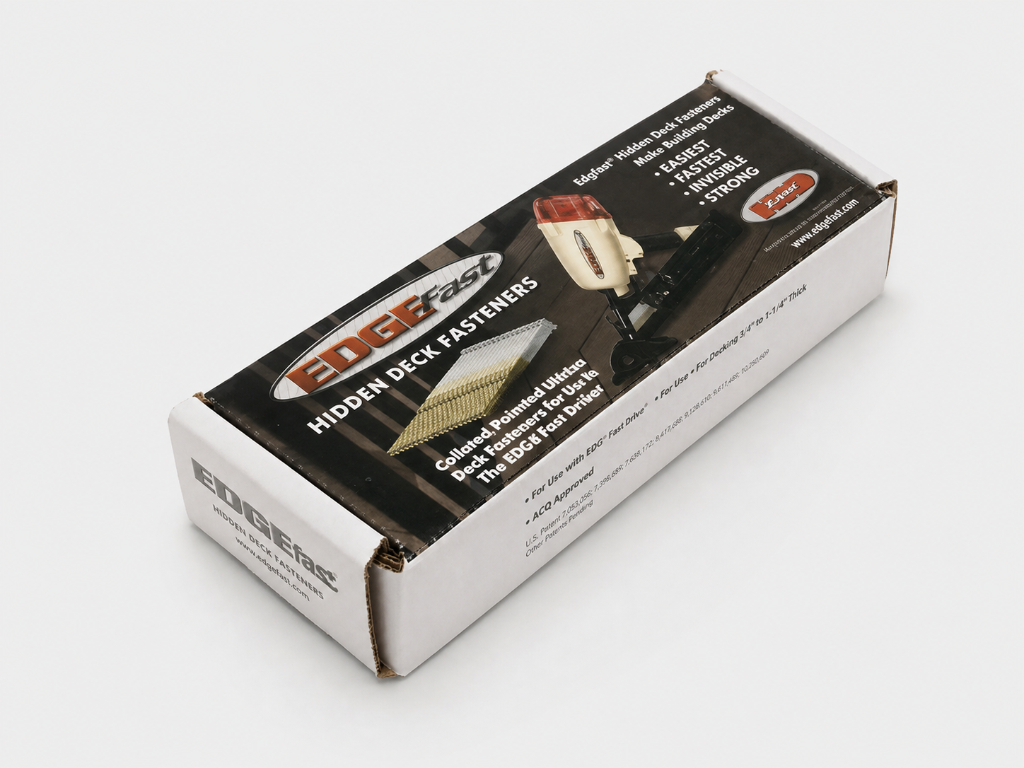

EDGEfast EF2.25EC
EDGEcoat Steel · 2-1/4 in · 350 ct
EF2.25EC fasteners are 2-1/4-inch EDGEcoat steel fasteners manufactured for the EDGEfast tool. The current package contains 350 fasteners, and the coating is approved for use with ACQ pressure-treated lumber. This option offers a more economical system fastener when stainless steel is not required.
Which EDGEfast Fastener Should You Buy?
| Fastener | Material | Length | Package quantity | Primary consideration |
|---|---|---|---|---|
| EF2.25SS | 304 stainless steel | 2-1/4 inches | 350 | Corrosion resistance and project specifications |
| EF2.25EC | EDGEcoat steel | 2-1/4 inches | 350 | Economical option approved for ACQ-treated lumber |
The correct fastener depends on decking material, framing treatment, environmental exposure, applicable codes and manufacturer requirements. For coastal, high-moisture or otherwise corrosive conditions, confirm whether the project requires a different stainless-steel grade or fastening specification before ordering.
Hidden Fasteners for Square-Edge Wood and PVC Decking
EDGEfast is built around square-edge board installation. This gives contractors a hidden fastening option without requiring every board to arrive with a factory groove.
EDGEfast for Square-Edge Wood Decking
EDGEfast is designed for many approved square-edge wood deck boards. The angled fasteners enter through the board edges, leaving the natural grain and color uninterrupted by exposed screw heads. Wood species, density, actual board dimensions and moisture condition can affect installation. Confirm that the selected lumber is approved for EDGEfast, use the correct gap plate and follow all acclimation, spacing and predrilling requirements.
EDGEfast for PVC Decking
The EDGEfast system is also designed for approved square-edge PVC decking. The interchangeable gap guides help installers follow the spacing required for the project while the edge-driven fasteners preserve a smooth finished surface. PVC products vary by manufacturer, product line and thickness. Always confirm the specific board and fastener combination before beginning installation.
What About Composite Decking?
Do not assume EDGEfast is compatible with every composite deck board. The product information emphasizes PVC and most wood square-edge decking. If a project specifies composite decking, verify that exact manufacturer, product line, profile and thickness against the latest EDGEfast compatibility information — or use a fastening system approved by the decking manufacturer. Fastener Express can help review the project information before you purchase the tool or fasteners.
How the EDGEfast Pneumatic Decking System Works
EDGEfast is a professional pneumatic fastening system. Operators should read the complete manual, receive appropriate training and use required personal protective equipment before working on a customer project.
- 1
Verify the Board and Fastener Combination
Identify the decking manufacturer, product line, material, actual thickness and profile. Confirm EDGEfast approval and choose either EF2.25SS stainless steel or EF2.25EC EDGEcoat fasteners according to the project requirements.
- 2
Select the Required Gap Plate
Install the 0-inch, 1/8-inch, 3/16-inch or 1/4-inch spacer plate required for the deck board and installation conditions. Follow the decking manufacturer's spacing guidance rather than selecting a gap based on appearance alone.
- 3
Prepare the Tool and Air Supply
Load the compatible collated EDGEfast fasteners and follow the operating manual for lubrication, air-pressure settings, hose requirements and safety procedures. Inspect the tool, compressor, framing and boards before starting.
- 4
Position EDGEfast Over the Joist
Place the tool between the adjoining square-edge boards and directly over the joist. The tool and selected spacer guide position the boards for the fastening sequence.
- 5
Drive Two Opposing Hidden Fasteners
Activate the tool once in each direction to drive an angled fastener into both adjoining board edges. This is the core EDGEfast advantage: one placement over the joist secures two edges.
- 6
Continue the Installation
Advance to the next joist and repeat the approved process. Follow the manufacturer's instructions for perimeter boards, picture framing, butt joints, stairs, diagonal layouts and any other special conditions.
EDGEfast or HIDfast: Which Hidden Decking System Fits the Job?
EDGEfast and HIDfast are related professional pneumatic deck fastening systems, but they use different installation methods and are suited to different board configurations. Neither system should be chosen from the product name alone. Start with the exact decking board, profile, thickness and project specification.
| EDGEfast | HIDfast | |
|---|---|---|
| Core action | Place over the joint and drive two opposing fasteners | Drive one fastener through a board edge, then engage the next board |
| Primary positioning | Between two square-edge boards over the joist | At the edge of the installed board |
| Board profiles | Approved square-edge PVC and many wood boards | Approved square-edge, single-groove and double-groove boards |
| Gap control | Interchangeable gap spacer plates | Gap is determined by the selected fastener or installation configuration |
| Fastener options | EF2.25SS stainless or EF2.25EC EDGEcoat | HIDfast stainless fasteners selected by board and gap requirements |
Buy EDGEfast From a Contractor-Focused Fastener Supplier
Fastener Express supplies professional deck builders, remodelers and construction crews — not just casual retail shoppers. That means access to the EDGEfast tool, compatible fasteners, knowledgeable product assistance and contractor purchasing options in one place. Speak with a fastener specialist: call (952) 469-2943 for EDGEfast tool questions, fastener selection, bulk orders, service and delivery assistance.
Get the Correct Fastener Before the Job Starts
Tell Fastener Express the decking manufacturer, product line, material, thickness, framing and exposure conditions. The team can help narrow down the appropriate EDGEfast product using current manufacturer requirements.
Volume Pricing for Deck Builders and Large Projects
Buying for a large deck, development, multi-unit project or multiple crews? Submit a bulk quote request for volume pricing, delivery options and purchasing terms.
Twin Cities Same-Day Jobsite Delivery
Fastener Express offers same-day fastener delivery to qualifying Twin Cities jobsites. Confirm current delivery coverage, order deadlines and stock availability before placing a time-sensitive order.
Pneumatic Tool Service and Repair
Downtime destroys production. Fastener Express services and repairs professional pneumatic tools, including tools purchased elsewhere. Contact the service department to confirm the model, parts availability and turnaround time.
EDGEfast Hidden Deck Fastener FAQs
Stop Paying Skilled Installers to Drive Screws One at a Time
Your crew's time is too expensive for a fastening process built around loose hardware and repeated repositioning. Put pneumatic speed behind your next approved square-edge deck with the EDGEfast hidden deck fastener system. Place it once. Shoot it twice. Leave the screw heads off the finished surface — and keep the project moving.
